The LCS Windmaster SLIDEKIT round top rolling tarp system for truck bodies delivers a sleek contoured appearance which reduces wind drag over a square top tarp system. It is the real-life resemblance of the 1800's WESTERN WAGON which delivered goods across America and now this modern-day version is rapidly populating our interstates. Its dome roof design rises 24" in height and avoids any concern of roof damage should your round top SLK encounter excessive rains or snow in comparison to a flat roof design. Its STD 66" side and 90" OAL center height is perfect for 72" Coils or lower loads. A LCS SLIDEKIT at 90" Ht. is more fuel efficient then a 72" high flat top system. If you need to cover higher loads, LCS will build up to Maximum height systems.
The Windmaster SlideKit for truck bodies is typically a flat front aluminum bulkhead contoured to a 24" center arch roof line. With the square corners removed like that of a typical flat top system this model provides greatly reduced wind drag traveling over the road.
Customized your interior bulkhead with full cargo control storage providing for easy access to all your cargo equipment from the trailer deck in order to secure your loads quickly. There are NO Standards. "You tell LCS what Works for You & We Will Do It"
Shelves, Trays, Racks for Chains, J-Hooks, Binders, Straps, Coil Bunks, Coil Cuffs, 4x4 Dunnage Corner Protectors
****All Equipment Available to purchase from Load Covering Solutions****
Our Heavy Duty 6" C-Channel extrusion with a 1-1/4" extended, lower built-in High Impact Bump Guard safeguards against damage from side loading of forklifts. An inverted V-shaped highly precision roll formed stainless steel insert slides in and provides the perfect rolling surface for any LCS, 3" V-Groove machined steel roller.
Our rollers, with our own replaceable custom designed sealed bearings eliminates the need to replace the complete roller assembly, thus saving huge costs over the life of the system. Don't be fooled in thinking all systems have the same quantity of rollers. Infact, most systems have 2-3 times that of LCS system. A 40ft GN system as an example rolls on (24) 3" steel V-grooved wheels.
LCS High Impact Track offers the only "Patented" built in undermount attachment to slide in one of two optional aluminum extruded light bars.
• 2" Light Bar allows 1" LED bullet lights on 12", 24" or 48" centers.
• 4" Light Bar allows 2" LED round lights on 12", 24" or 48" centers.
No Bolts, Rivets or Welding so never worry about your light bar breaking loose with constant flexing of loaded trailers.
1) The LCS aluminum frame extrusion has the tarp connector grooves internal of the tubular design.
Q. Why would this be important?
A. Because when the tarp system frames come in contact with interior building doors, fence posts & gates, trees and other objects the unprotected exterior raised grooves are subject to damage. The slightest pinching of those grooves will make it very difficult in getting the tarp panels replaced easily, and cost effectively. It might even lead to the replacement cost of a new frame and panel.
2) The interior design allows LCS frames to be narrower in depth and thus an LCS system can provide up to 1" extra interior load width.
3) LCS vertical side and top frames are assembled with a 2-part interior 90 degree square corner casting.
A. Primary Casting inserts into the aluminum extrusion connecting the sides and top in place.
B. Cap Casting attaches to the side and traps the tarp panel and locks it into place.
Q. Why is this design unique and important?
Because the tarp panel install or replacement doesn't require the panel to be started from the bottom and pulled up through the tight corner across and down. An LCS tarp panel starts at one top corner where it slides straight vertical, while the opposite end slides across the horizontal roof, straight vertical down on the opposite side. The Cap is then inserted over the exposed open side corner and traps the tarp panel locking it into place by torquing the provided bolts. If Down Time & Cost isn't important then this frame design is irrelevant)
4) All LCS Lower Car Frame plates are easily assembled by sliding the upper frame over a solid extruded vertical post(s) and bolting.
LCS Component Designs are built Rugged and made to Last!
• White Axillary Wheels come standard on all systems as a new upgrade now which are not required in the tracking of an LCS system but to provide assistance to the rolling performance should any of the lower car plates get side damage in its travels. It's like having insurance, you don't need it, until you do!
• Patented Lower Uplift Clips now come standard with most systems attached to lower car plates. This feature eliminates welded clips high up on the car frame like other systems that can cause tarp damage while pleating. With the different LCS Patented uplift configurations these clips allows any set up at any time. See Uplifts for further details)
A: Every system has their own version of these scissor bows with the common purpose and intent to provide tarp roof support between each rolling car frame located on 7ft -8ft centers the length of the trailer and to minimize downward tarp pleating into the loading zone while being retracted.
LCS standard uplifting tube extrusion in comparison is the heaviest duty wall thickness over all our competitors. With the open road cross winds the structural integrity of these light weight structures is vitally important and plays a big part in the future wear and replacement of your modular tarp panels.
Double Hinge Connected (HD/BC): LCS Heavy Duty / Bent Corner Step Ladder design is free standing and always puts vertical roof support where its needed. No straps or pockets required to hold this uplift to the roof. All LCS uplifts have a rolled form 1" arch to center above the rolling car frames to ensure there is water run off. Downward tarp pleating with this configuration averages 9"-12" in to the loading area when pushing the system ahead.

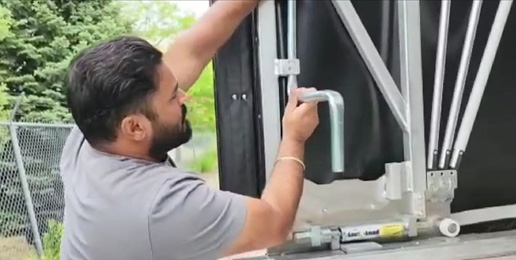

1. LNL is a simple common sense design comprising of a short barrel, a coil thread and an over-center flip down thrust nut which is easily operated with a removeable manual crank handle. A Swivel Fixed Crank Handle attached to the LNL is optional if your worried about loss.
2. LNL is conveniently bolted on the rear car plate and travels with the car frame just above the track so that it never gets lost or stolen like other system locks. Its quick and easy to replace and it can be retro-fitted to ALL Trade Marked "CONESTOGA" Models.
3. With a 23" wide robust and structurally built rear car frame combined with our railroad track and wheel design, LCS systems DO NOT require a interior structural apparatus or post to support the car frame higher up. Don't Be Fooled!
LCS transitioned in 2006 from its original 1-piece manufactured tarpaulin design to a fully segmented panel, providing the industry with the ability to respond to tarpaulin damage quickly by replacing only the sections as required. The industry has gone standard on 20oz per SQ.YD. European High Quality Tension Fabric with a urethane top coating. These materials perform incredibly well and by combination of system design and fabric choice todays rolling tarp systems resemble that of a hard side van trailer.
STD SYSTEMS ARE 66" SIDE HT. + 24" ARCH TO CENTER = 90" ABOVE DECK
LCS will build up to Maximum 13'6" Heights.
Point of Interest: A round top system sitting in the rain with a hole in the roof will tend to let water run off before ever pooling like a flat top and funneling direct rain into the interior of your truck bed. LCS - A Commonsense Solutions Company!
• Our 4" Wide Over-center Velcro Side Wings are STD with our own developed Shock Cord for quick, simple security of main flap.
• Upper corner side wings are secured with criss cross ropes and 9" rubber strap to ensure they remain in place while travelling
At LCS we believe in investing in the power of marketing and no better way to gain a Return On Your Capital Investment (ROI) with allocating advertising and marketing budgets over the road. Look to a load covering system to promote your corporate messaging and watch the capital investment SOON be quickly justified. NOTE: Everyone remembers a great looking billboard especially if it's driving beside you!
Note: Average Graphics Life Expectancy depending on the application is 7 years. Based on your original Capital Investment for an LCS Tarp System & amortized over 84 months, its costing you only $ 238.00 / month to promote your corporate messaging.
If you're in the market for a rolling tarp system to enhance your flatbed trucks load covering versatility, LOOK to the LCS - SLIDEKIT.
Our technical sales expertise combined with our advanced innovations and design engineering will provide years of trouble-free load covering performance at the lowest maintenance cost. Call us for more information and pricing.
Get the LOOK and be sure to browse our other Western Wagon models of similar systems available at LCS
