Discover the widest range of Tarp System Models, patented features and the benefits that comes from the buying the BEST!
• CFD Tested Aerodynamics Up To 12% Wind Drag Reduction PROFESSIONAL DESIGN + LOWEST MAINTENACE = BEST VALUE! |
|
• CFD Tested Aerodynamics Up To 12%
• Best Manual Tarp Tensioning Mechanism
• POWAIR Front & Elect /Hydraulic Rear Locks
• Widest Inside Frame Width & Height
• 95% Reduction of Interior Tarp Pleating
• Most Maintenance Free Track & Wheel Sys
• High Impact Bump Guard Track
the LOOK™ - Standard Flat Top Modular Tarp System
LCS standard engineered rolling tarp system identified with an aluminum or mirror stainless front bulkhead provides quick ground level operated load covering for general freight, metal or building products. Fleets and owner operators will see years of operational performance & longevity at the lowest maintenance cost!
Main Features:
• High Impact Alum. Bump Guard Track, 28 Steel V-Grooved Wheels rolling on inverted stainless insert.
• Modular Extruded Frames makes tarp panel replacement quick & easy.
• Manual or Auto Front & Rear Lock & Tensioning.
• Double Hinge, 4-Lifter & Patented 6-Lifter Uplifts.
• 20oz. Tarp Panels w/ Crank or Pull Up Rear Flap w/ 4" Velcro Side Wings
Semi: Flatbeds, B-Trains, Drop Deck, Double Drop Deck, Tilt Decks, Truck Bodies, Tilt Bed (Car Hauling) & Boom Trucks
Non-Semi: Straight Flatbed Gooseneck, Tilt Gooseneck, Monster Ramp Gooseneck, Deck Over & Fender
the Windmaster GR8LOOK - Aerodynamic Flat Top Modular Tarp System
LCS GR8LOOK re-engineered the Industry's flat top, flat front bulkhead to reduce Wind Drag, leading to enhanced fuel efficiency, prolonged tarp life and provided driver safety with a more stable pulling trailer.
The GR8LOOK can be identified with its tarp color matching 10" fiberglass molded top fairing with molded side legs, Std. aluminum or optional mirror stainless front wall.
CFD tested with a 45" Gap between Truck & Trailer traveling at 65MPH in comparison to a 100" high flat front alum. bulkhead, LCS GR8LOOK reduced Wind Drag by 6% while enhancing Fuel Efficiency by 3%. GR8LOOK is Aerodynamic Alternative Bulkhead to the LOOK.
Semi: Flatbeds, B-Trains, Drop Deck, Double Drop Deck, Tilt Decks, Truck Bodies, & Tilt Bed (Car Hauling)
Non-Semi: Straight Flat Gooseneck, Tilt Gooseneck, Monster Ramp Gooseneck, Deck Over & Fender
the Windmaster SMARTLOOK - Aerodynamic Flat Top Modular Tarp System
In 2015, LCS undertook designing a full wrap fiberglass aerodynamic nose fairing which sets ahead of the trailer front sill for an optimum overhang of 20". With a 45" gap between truck & trailer and comparing to a Flat Aluminum Bulkhead at 100" high traveling at 65 MPH, LCS successfully reduced wind drag by 12% and enhanced fuel economy by 6%. Operators have 100% full deck utilization with all customized cargo control storage set ahead and off the deck inside the Windmaster.
SEMI: Flatbeds, B-Trains, Drop Deck, Double Drop Deck & Tilt Decks
the Windmaster SLIDEKIT - Aerodynamic Dome Top Modular Tarp System
In 2008, LCS took to designing a new rolling tarp system for hauling dedicated round metal coils which would offer a choice over the current flat top systems. The SLIDEKIT™ would be streamlined & contoured to the shape of the load, weigh less then a flat top while offering substantial wind drag reduction. Optimum system height for hauling 72" coils is 66" sides with 24" arch, equalling 90" center height. CFD testing confirmed Wind Drag reduction of 11.89%, and 5.98% Fuel Efficiency
Semi: Flatbeds, Drop Deck, Double Drop Deck Truck Bodies Tilt Bed
Non-semi Straight Flatbed Gooseneck, Tilt Deck Gooseneck, Monster Ramp Gooseneck & Deck Over
ALCS - Hard Top / Soft Side Curtain Tarp System
LCS recognizes not all products require overhead loading access and a rolling tarp system has too many moving components that can easily be damaged. That's why LCS design-builds its own hard top van like trailer system that is versatile to load like a flatbed. ALCS™ is the perfect alternative covering solution for a wide variety of products like the Building & Construction Industry. KNOW YOUR OPTIONS!
Semi: Flatbeds, B-Trains, Single Step Deck, Double Drop Deck & Truck Bodies
Non-Semi: Straight Flat Gooseneck, Monster Ramp Gooseneck & Deck Over
|
Discover how we are taken over 4 decades of success in designing transportation covers to now expanding into exterior retractable storage covering systems.
• General Storage for Exterior Inventory |
|

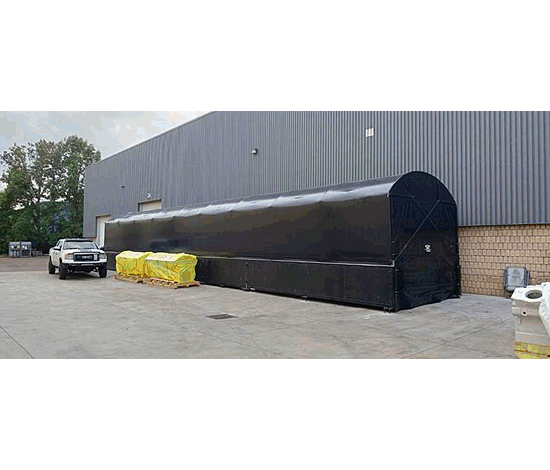

Discover how LCS has taken over 4 decades of success in designing transportation covers to now expanding into exterior retractable storage covering systems.
• General Storage for Exterior Inventory
• Protective Covers for Environmental Containers
• Exterior Outside Building Extensions for Additional Workspace
• Interior Workspace Segregation
• Vehicle Storage Covers
